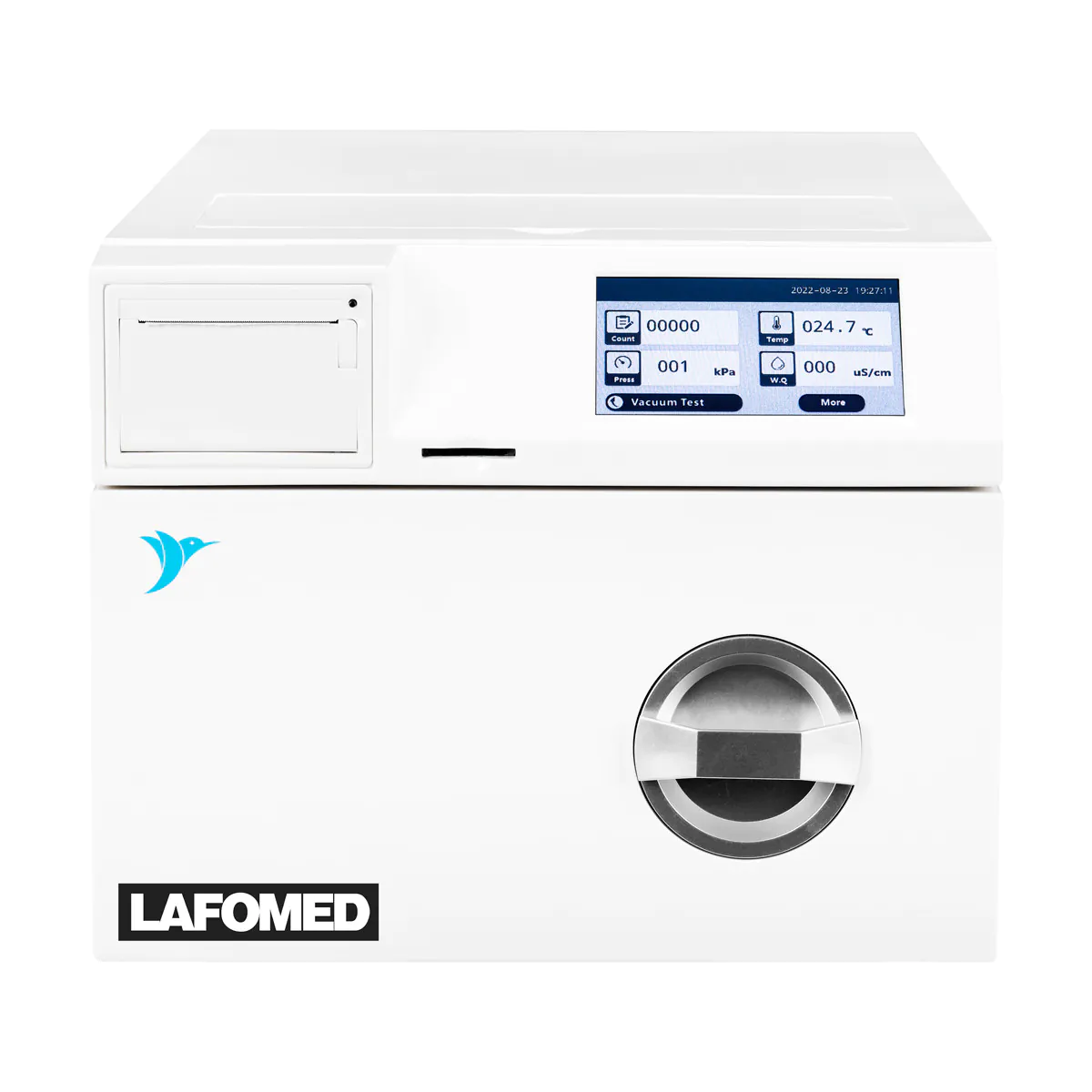

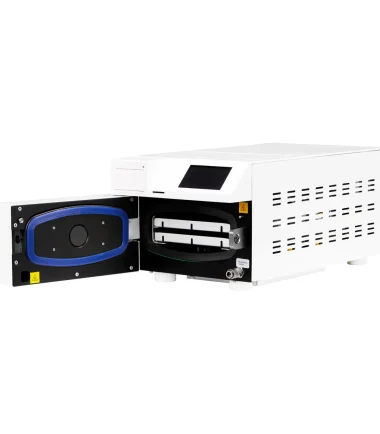

Lafomed LFSS03AA Touch autoclave with printer 3 L class B medical
Medical Grade | Warranty: 24+12 months
We are extending the basic warranty on LAFOMED autoclaves to 24 months. For a fee, you can extend the warranty for another 12 months before the basic warranty expires.
High-quality autoclaves
Lafomed is a brand of high-quality autoclaves, recognized in over 50 countries worldwide. The autoclaves meet all medical standards and directives. These devices are characterized by a low failure rate, and their microprocessors utilize the latest generation of electronic modules. Lafomed autoclaves are characterized by high efficiency and durability, and their operation is simple and intuitive.
INTENDED USE:
The LFSS03AA Touch autoclave is designed for the sterilization of invasive medical devices. The device helps prevent cross-contamination. The autoclave is particularly suitable for hospital wards, dental offices, ophthalmology offices, and biological research institutes. It is intended for the sterilization of surgical instruments, dental tools, syringes, etc. It is used for the sterilization of packaged (single- and multi-layer) and unpackaged solid products, porous products, and hollow objects in accordance with the EN 13060:2004+A2:2010 standard. The autoclave can also be used for non-medical and veterinary applications.
Warning: The device is not intended for sterilizing liquid substances.
Top-class autoclave
The Lafomed LFSS03AA Touch autoclave with a 3-liter printer is particularly recommended for hospital departments, dentistry, and ophthalmology, as well as for Biology Institutes conducting research projects. It is ideal for hairdressing and beauty salons, tattoo studios, and aesthetic medicine clinics. The device is designed for sterilizing both medical and non-medical instruments. Thanks to the collaboration between the technical departments of Lafomed and Activeshop, a device has been created that will satisfy the most demanding users. Sterilization with the highest medical- grade Class B autoclave ensures full effectiveness and safety.
Functionality you will appreciate
This compact device features a built-in thermal printer. The autoclave features an  LCD touchscreen display and an SD card slot for saving cycle results. It offers seven fully automatic programs : four sterilization programs, two test programs, and a drying program. The menu is intuitive, and the user-friendly interface is in Polish. The preheating and heat retention functions are also useful . The Lafomed Touch 3L autoclave features fast sterilization programs. The shortest cycle for sterilizing instruments takes 6 minutes, including drying, and just 8 minutes for packaged items. The device has a built-in tank for clean (distilled) water used for sterilization, as well as a wastewater container. The self-diagnosis system effectively protects against damage and ensures the device’s durability. The autoclave meets all Sanitary and Epidemiological Station requirements, and after purchasing this model, there is no need to report it to the Office of Technical Inspection.
Automatic sterilization programs
| Sterilization programs | Cargo type | Total cycle time* |
| 134° Fast | Packaged and unpackaged; solid, textile, recessed | 8 minutes |
| 134° Universal | Packaged and unpackaged; solid, textile, recessed | 10 minutes |
| 121° Universal | Packaged and unpackaged; solid, textile, recessed | 28 minutes |
| 134° Lite | Unwrapped; solid (to be used immediately after sterilization) | 6 minutes |
*Refers to the time after the device has warmed up.
Extendable warranty (24+12)
The Lafomed autoclave is covered by a 24-month warranty . It’s worth noting that the warranty is not dependent on the number of autoclave cycles. It’s possible to extend the warranty for another 12 months provided that a paid technical inspection is completed at an authorized service center before the basic warranty expires. This option applies to devices purchased after August 22, 2022. A free technical passport is also included !
Nationwide network of authorized LAFOMED service centers
We are pleased to inform you about changes in the servicing of LAFOMED autoclaves. To meet the demands and needs of our customers, we are launching a nationwide network of authorized LAFOMED service centers as of September 2, 2024. Service centers are now available in every province, where you can drop off your device for repair or inspection.
Authorized service centers offer:
– annual inspections
– necessary warranty and post-warranty repairs
– the ability to perform these services on-site (on-site)*
– replacement devices for the duration of the repair*
– fast and efficient service.
Contact the central service center to find out where the nearest service center is located.
*Service available at selected service centers.
Specification:
| Class B medical | These are the highest class of autoclaves that allow for the most effective sterilization of unpackaged and packaged items, regardless of the type of instrument. |
| High quality workmanship | Autoclave manufactured according to ISO 13485 standard and CE 1023 certified. |
| Capacity 3L | This is a small but very practical autoclave. Unlike cassette autoclaves, Lafomed 3-liter autoclaves have a water reservoir, adjustable drying time, and a stainless steel chamber. They also have lower power consumption, making them more economical. |

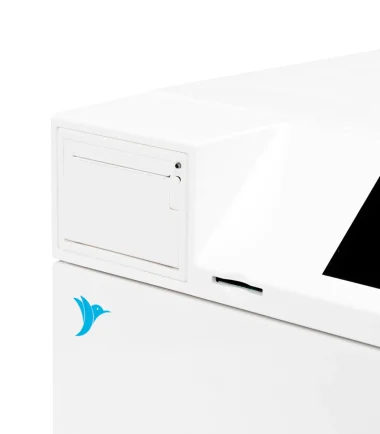

| Built-in thermal printer | No ink required. |
| Sterilization of loose or packaged instruments | A class B autoclave allows for the sterilization of both unpackaged and packaged instruments (solid or hollow). |

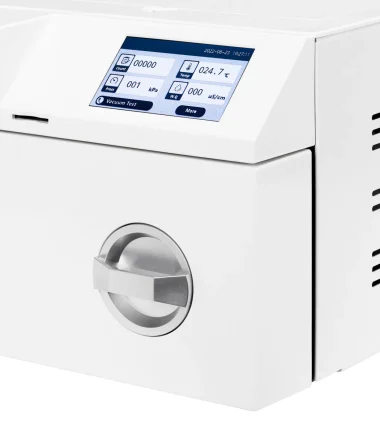

| LCD display | Indicates time, temperature, pressure and cycle progress. |
| Easy and efficient operation | The intuitive menu allows you to quickly select a program or set parameters, and the user-friendly interface is in Polish. |
| 7 automatic programs | 4 sterilization programs, 2 test programs; Bowie & Dick and vacuum test, and a drying program. |
| Short sterilization | The fastest program takes 6 minutes, including drying, and just 8 minutes for wrapped instruments. The autoclave also offers a drying time control option. |
| SD memory card reader | Save your data digitally and don’t worry about losing or destroying the valuable evidence you need. |
| Small dimensions | It takes up little space and is easier to transport than larger autoclaves. |
| Top-class Japanese ULVAC vacuum pump | The presence of this pump allowed for the placement of two tanks (for clean and used water) inside the device. |

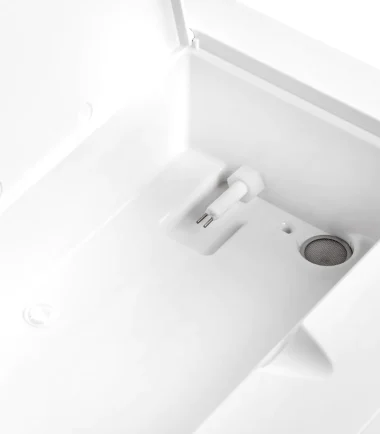

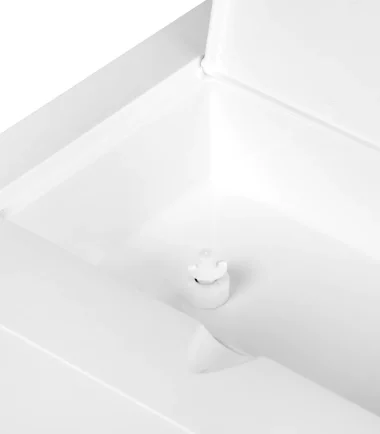

| Built-in tanks for clean water and used water | The clean water tank holds distilled or deionized water, which is used for sterilization. |

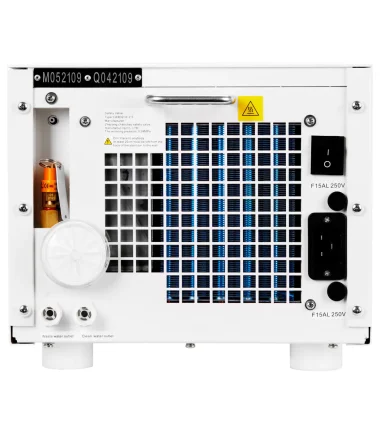

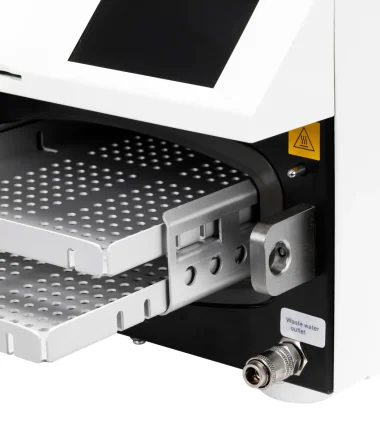

| Possibility of draining the used water from the front or back of the device | Drainage of used water is required when the tank is full or close to full. |
| Preheating and keeping warm function | The device will start to heat up as soon as it is turned on and will stay warm until it is turned off, thus reducing the sterilization time. |
| Self-diagnosis system | Effective protection against damage. |
| Water quality sensor | Monitoring water parameters for a stable and safe sterilization process. |

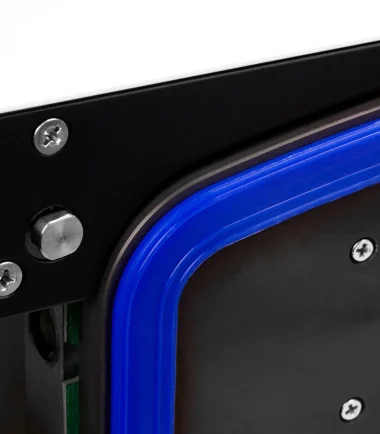

| Double door lock | An advanced system that secures doors mechanically and electronically. |

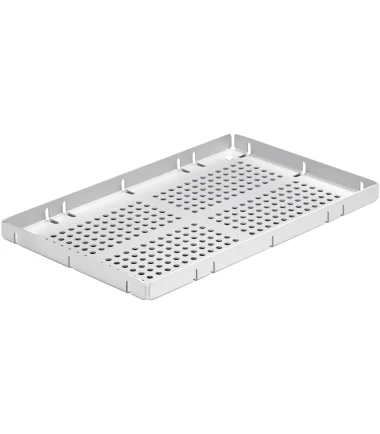

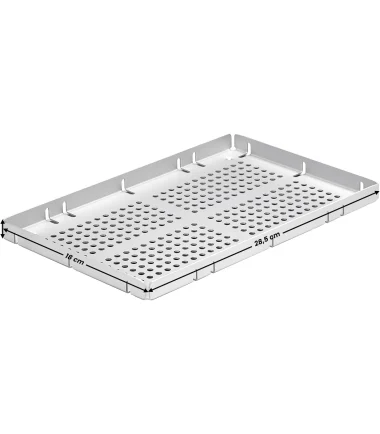

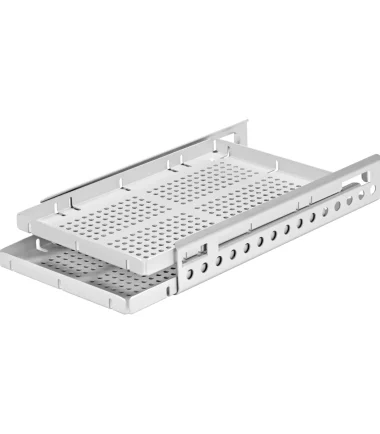

| It has two trays for tools | Optionally, it allows the insertion of a dental cassette. |
| 304 grade stainless steel chamber | This makes it extremely durable and more aesthetic, and proves the high quality of the device. |
| High-quality bacterial filter | Replaceable every 150 cycles, filters available in our store. |
| Meets Sanitary and Epidemiological Station requirements | There is no need to register with UDT. |
| Technical passport | The set includes a passport worth PLN 250. |
| Guarantee | 24-month warranty with the option to extend for another 12 months. |
Watch a video with information on using medical autoclaves:
Technical data:
| Certificates | CE 1023, ISO 13485 Standard PN-EN 13060: 2004 + A2: 2010 |
| Power | 2.9 kW |
| Tension | 220-240V |
| Frequency | 50 Hz |
| Maximum operating temperature | 137 ℃ |
| Maximum operating pressure | 0.24 MPa |
| Design pressure | -0.1 / 0.27 MPa; |
| Safety valve set pressure | 0.24 MPa |
| Safety valve opening pressure | 0.24 MPa ~ 0.26 MPa |
| Clean water tank capacity | 1 liter |
| Waste water tank capacity | 0.8 L |
| Automatic programs | – 134℃ Fast – 134℃ Universal – 134℃ Full – 121℃ Universal – Vacuum Test – Bowie&Dick/Helix Test – Drying |
| Vacuum times | 1-10 times |
| Drying time | 1-25 min |
| Time control | 4-60 min |
| Chamber capacity | 3 liters |
| Device dimensions | 24.5 x 29 x 59 cm |
| Package dimensions | 30 x 34 x 65 cm |
| Chamber dimensions | 19 x 7.5; depth 32 cm |
| Chamber material | 304 stainless steel |
| Net weight | 20 kg |
| Weight with packaging | 24 kg |

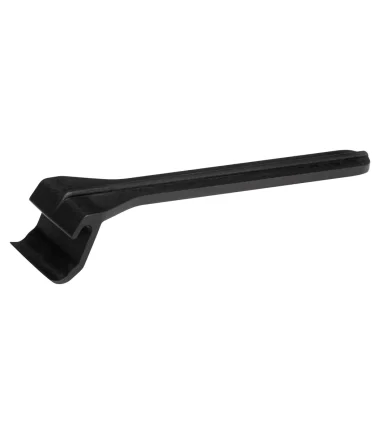

The set includes:Â Autoclave, drain hose, 2 trays, power cord, tray removal handle, user manual in Polish, technical passport.
Watch a video comparing the autoclave series available in our store:
